Honda NTV650 Revere - Carburetor

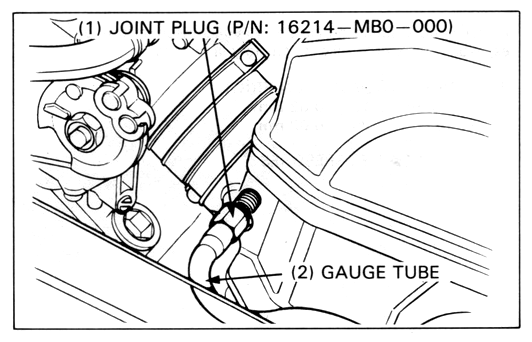

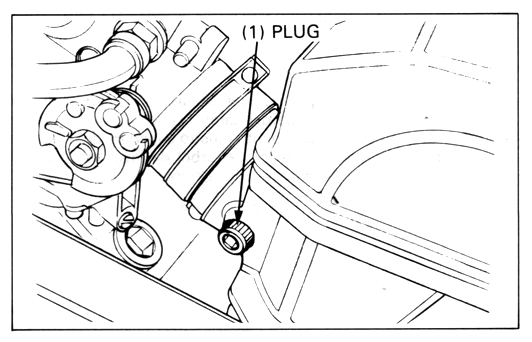

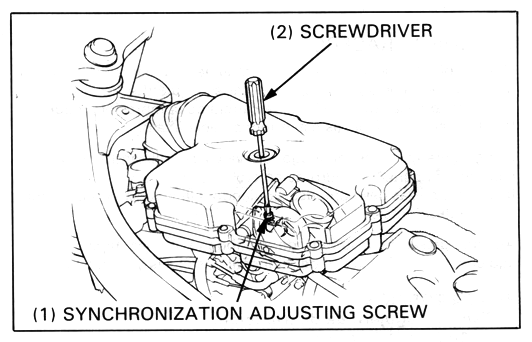

The Honda NTV650 Revere mounts two Keihin vacuum piston carburetors. When servicing the carburetors, it must be kept in mind that in addition to the vacuum piston diaphragm, there is also a small diaphragm that operates the air cut-off valve.

Here it is my experience in replacing the diaphragms and some information on the little-known air cut-off valve.

Replacing the diaphragms

Replacing the diaphragms at 100.000 and 200.000 km

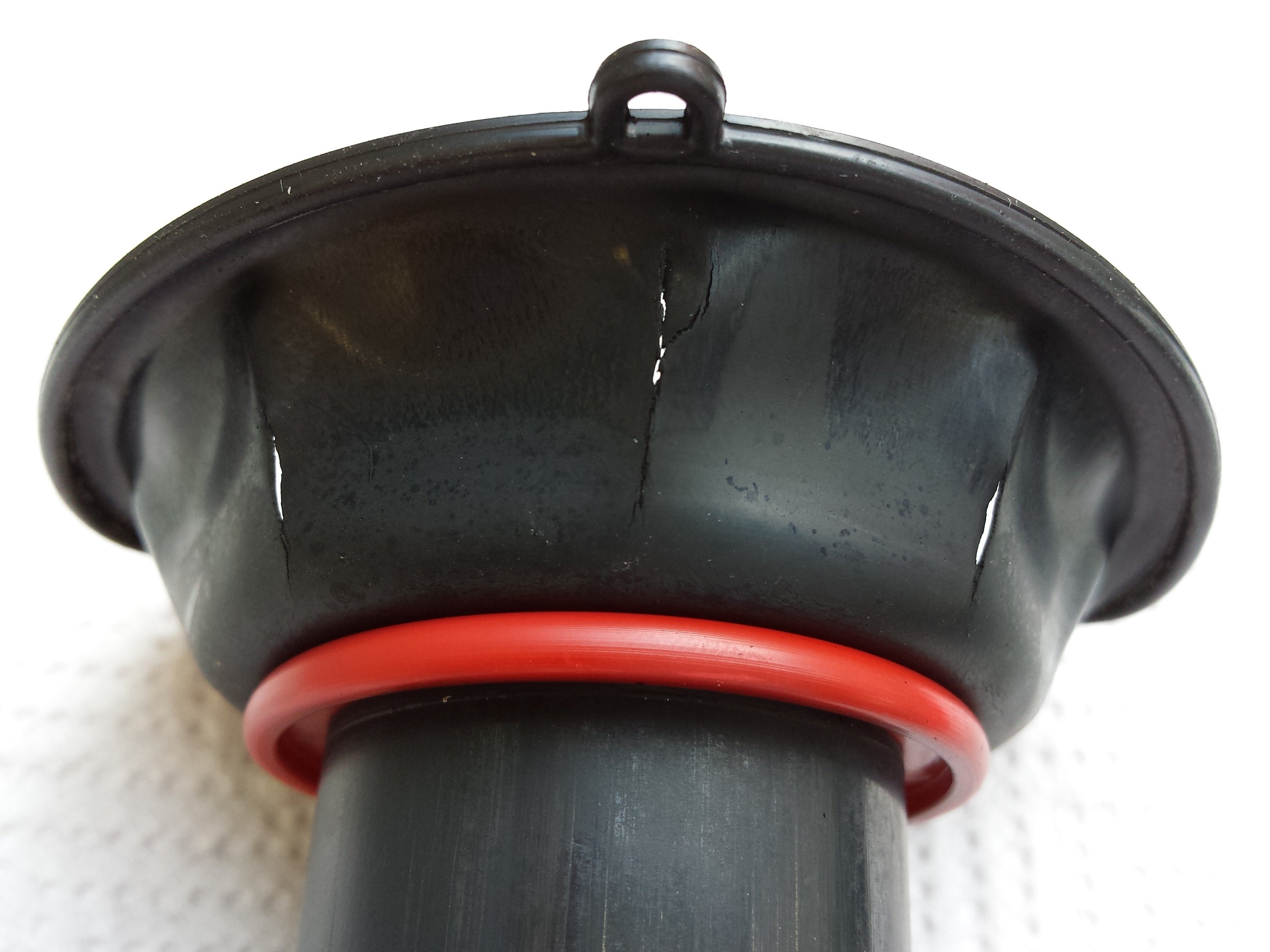

I replaced the complete vacuum cylinders with diaphragms the first time after 12 years, at 113,000 km. After another 12 years (24 years and 201,000 km in total) the diaphragms were again to be changed as shown in the photo:

Membrane Honda fessurate dopo 12 anni e 88.000 km di servizio

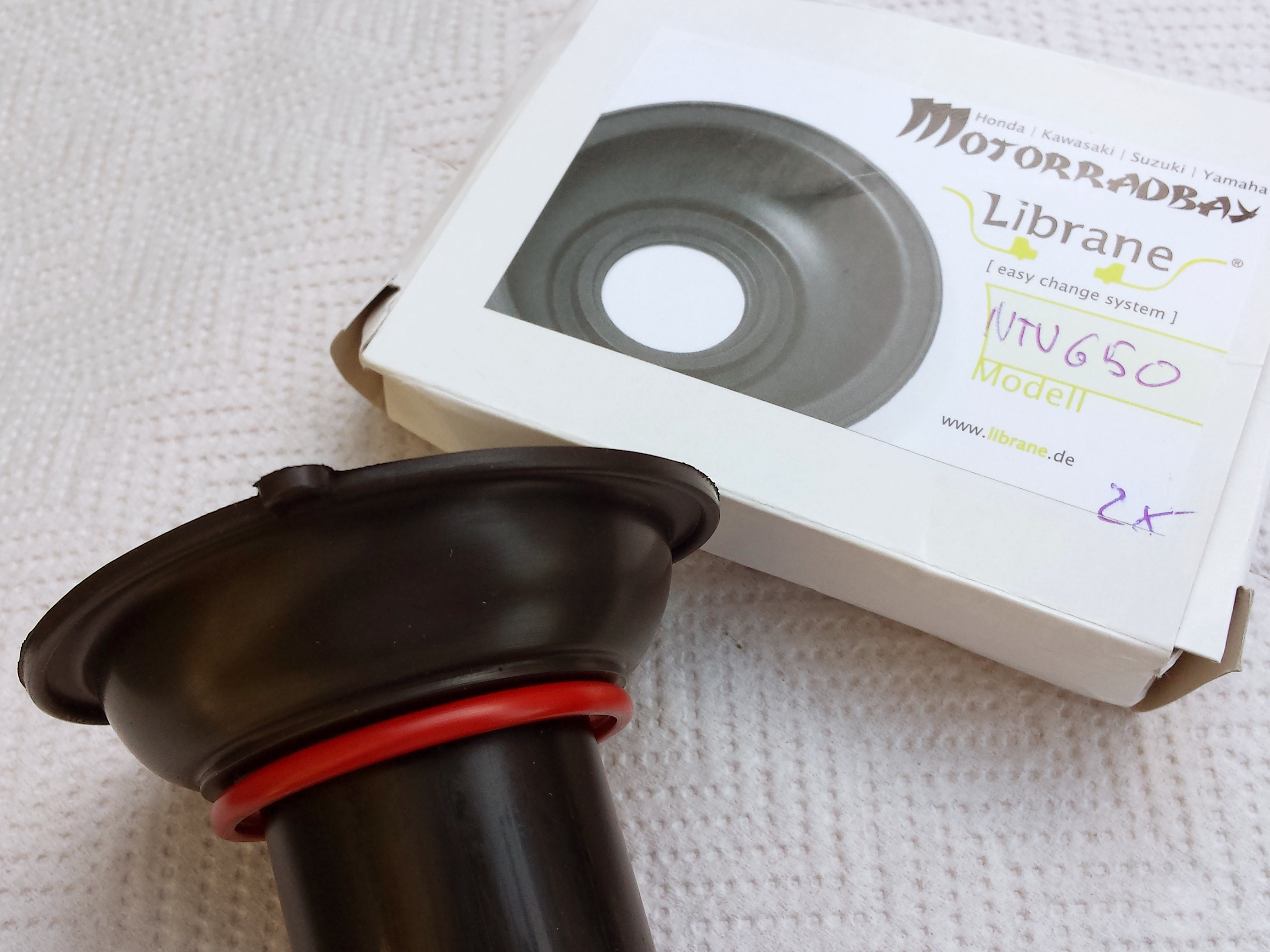

Unfortunately, mother Honda no longer produces the spare part (code 16112MN8014)! There are at least three types of non-original membranes adaptable to the NTV650, which differ in the way they are installed. One type requires cutting the upper plastic ring (the black one) which is then put back in place and glued. A second type requires that the black ring be removed and thrown away (it is the Librane model seen in the following photos), the replacement membrane is held in place with cyanoacrylate glue. The glue supplied is gel type, resistant to petrol and high temperatures. Finally, there is a model that must be installed like the original, inserting it in the space between the red and black rings.

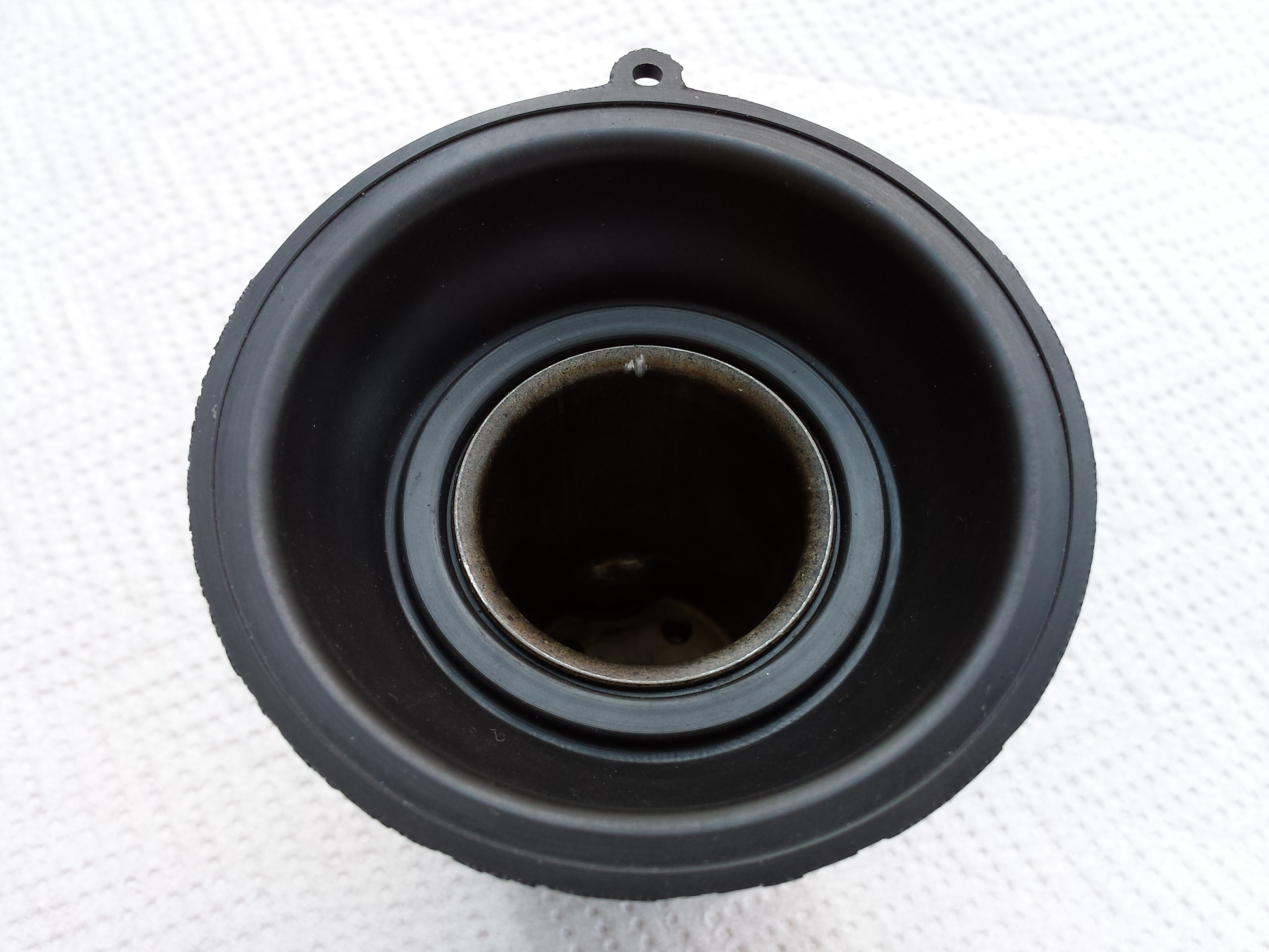

The following photos show the installation of a Librane type membrane, but I definitely prefer the type that fits exactly like the original; inserting the replacement diaphragm into the slot using a credit card is quite simple and does not require permanently modifying the piston.

Before removing the old membrane mark the point on the piston that corresponds to the membrane slot, because the new one will have to be positioned at exactly the same angle. The black ring can be cut with a cutter and removed. The groove can be cleaned and degreased with synthetic thinner. Be careful to spread a very thin layer of glue, so that the membrane enters well into the housing without encountering any thickness.

As soon as they were mounted, the result seemed good: the precision and sensitivity of the throttle was significantly improved compared to the old cracked membranes. In a few months I will check the actual seal of the membrane and especially of the glue. The one supplied reports among its characteristics a maximum operating temperature of 80 °C. Probably the Loctite 454 has better characteristics.

In the following picture you can see the mounting position of the diaphragm, seen from below:

Diaphragm alignment Diaphragm original position

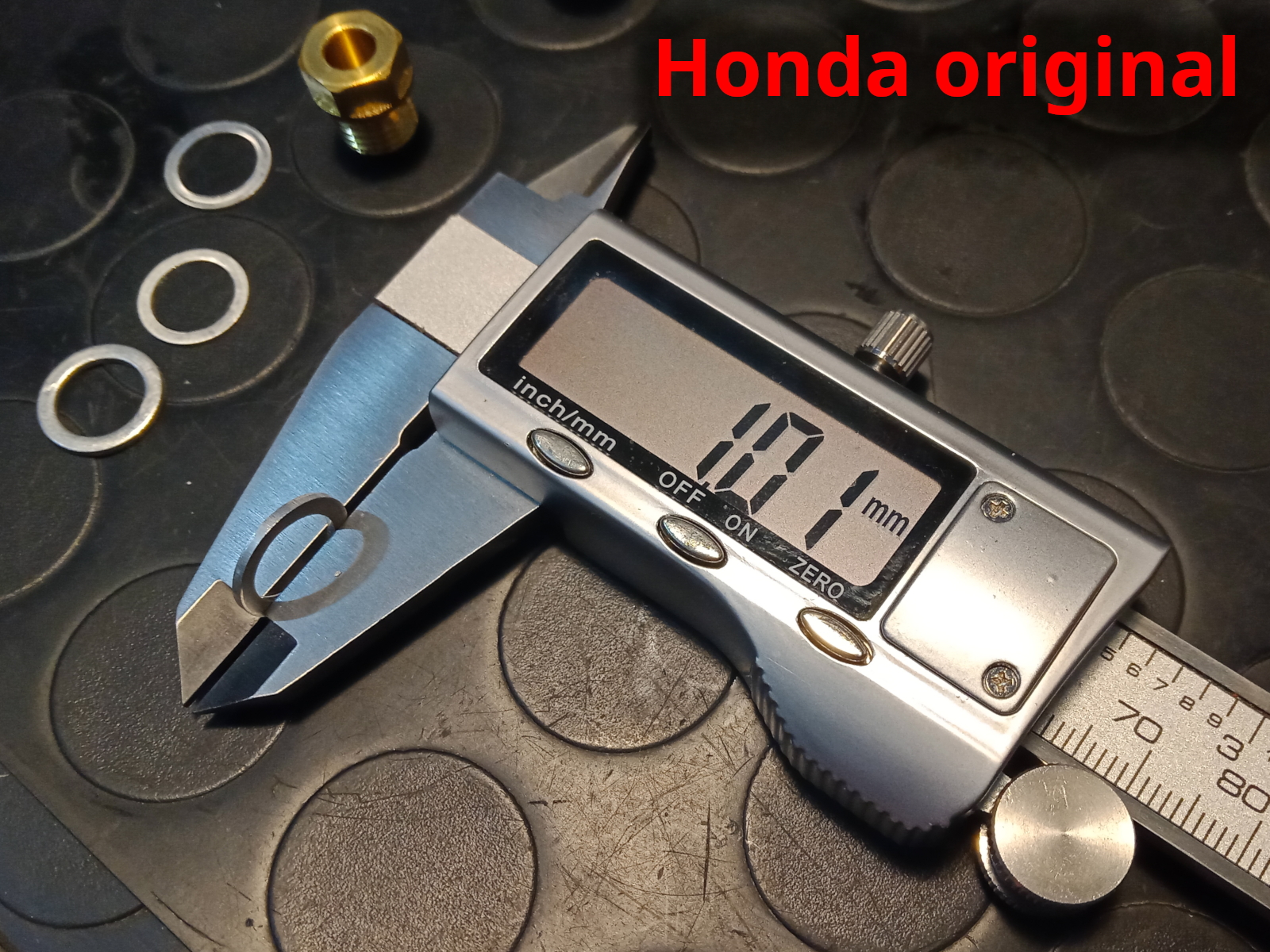

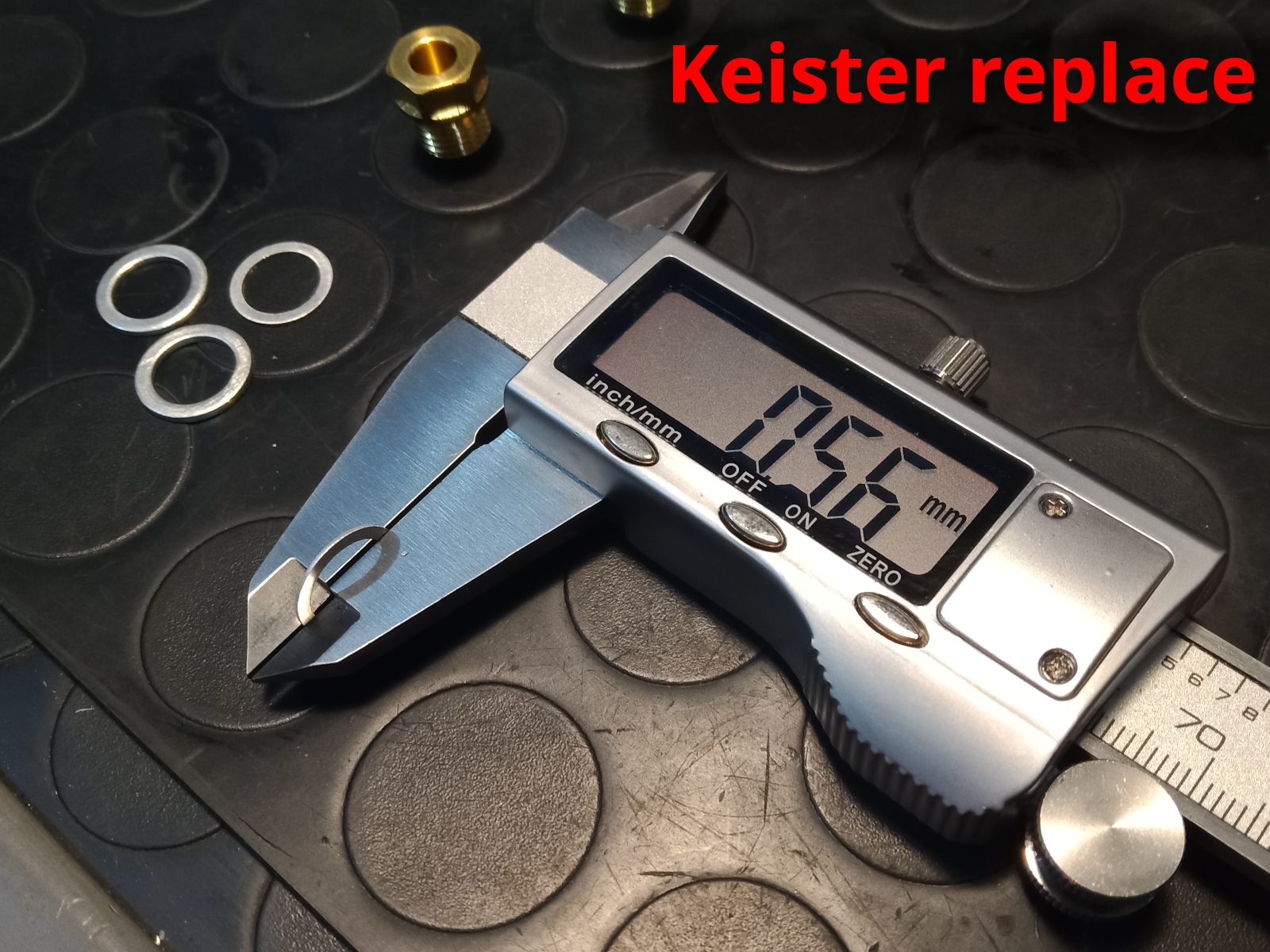

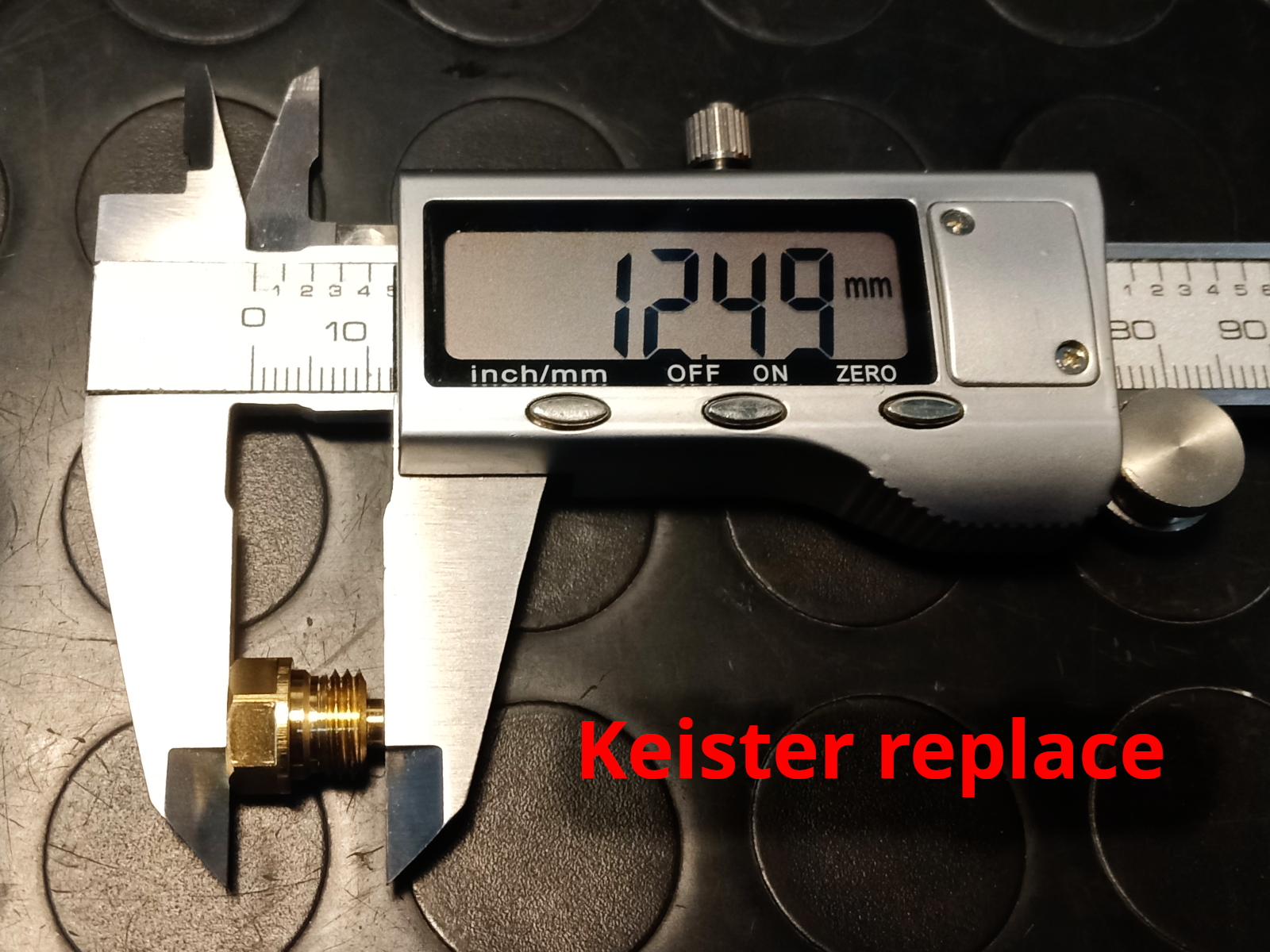

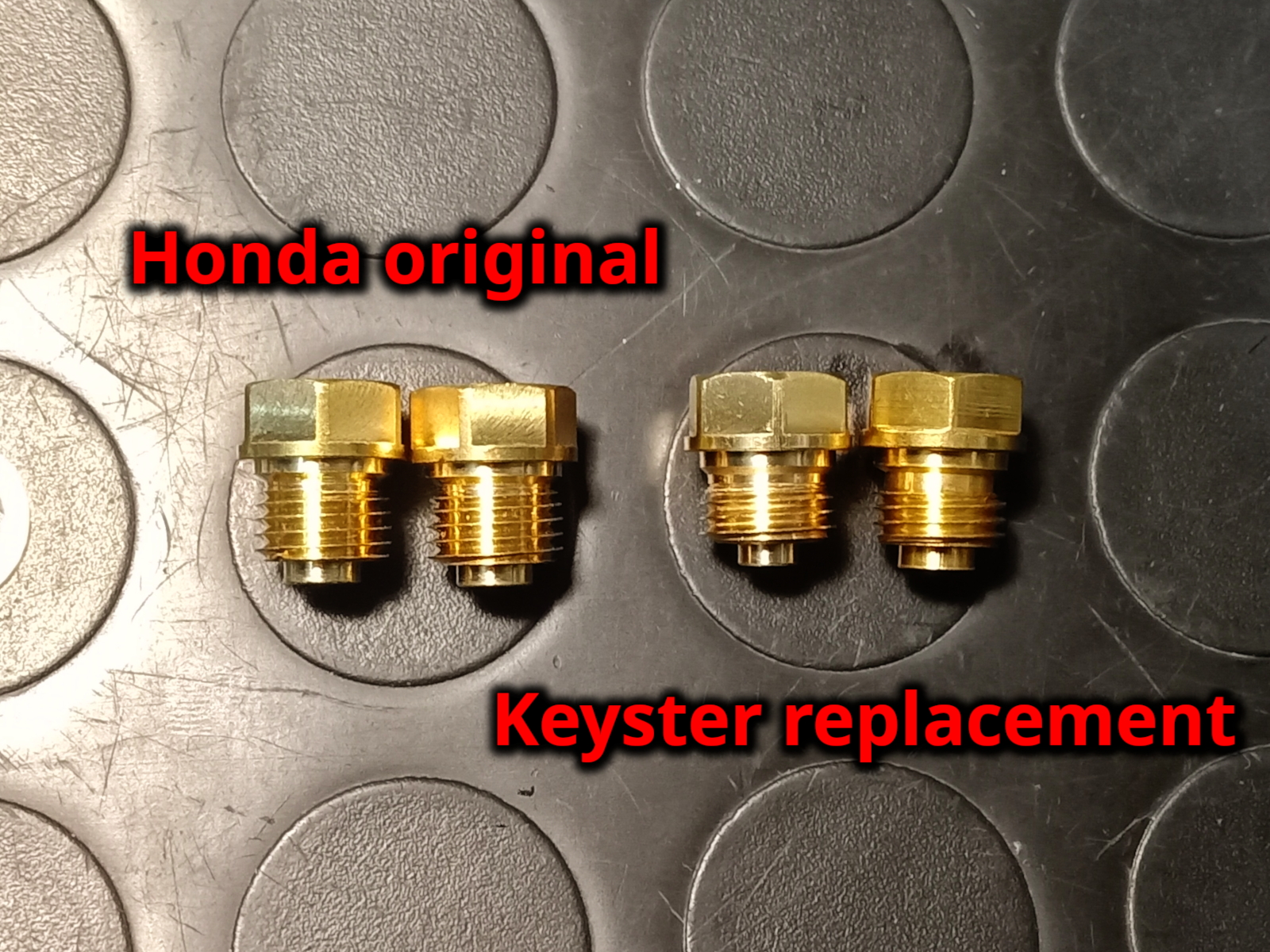

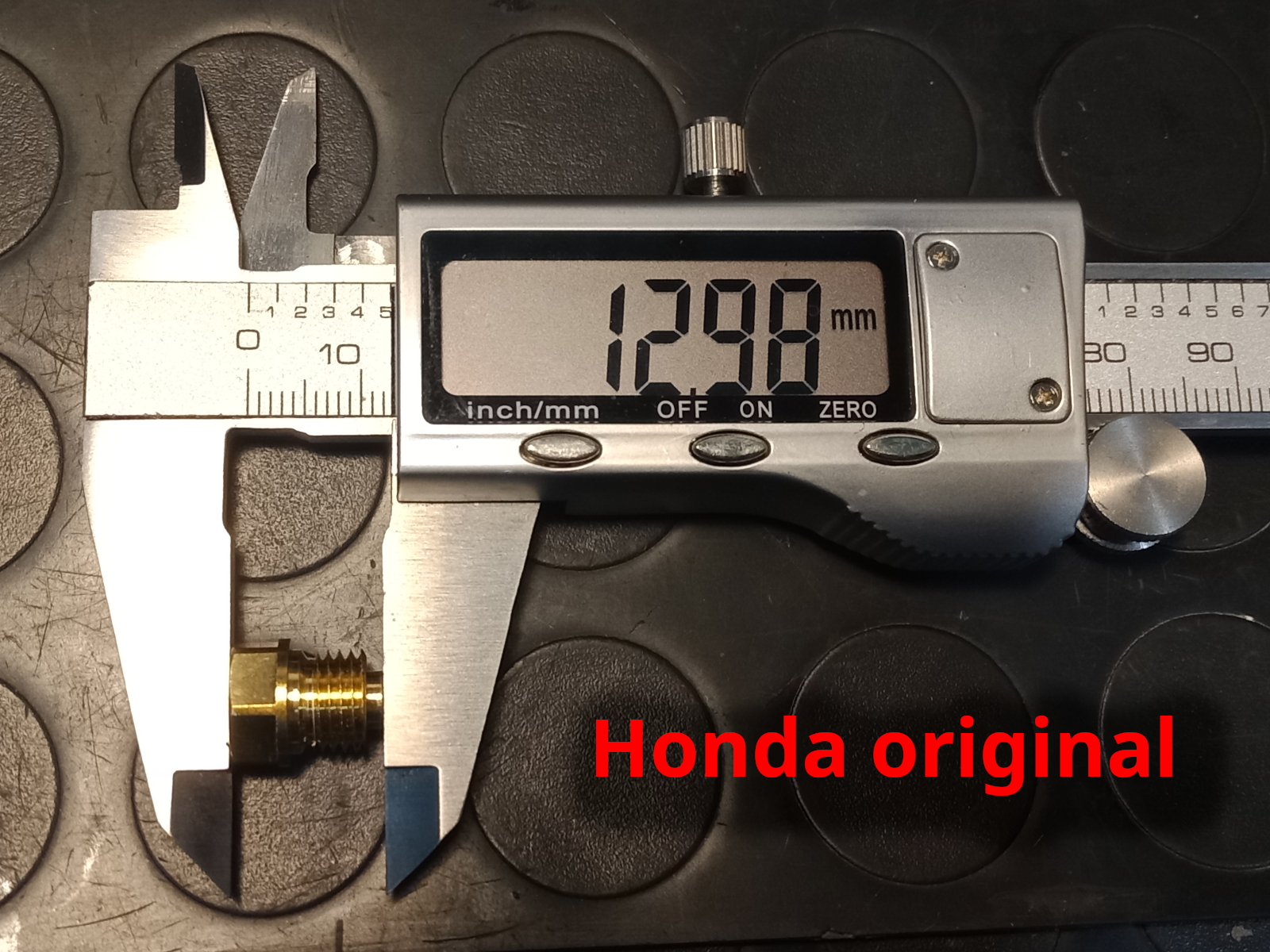

Jets and pilot screw

The main jets are different sizes in the front and rear cylinder carburetors.

Carburetor Main Jet Slow Jet
Right (front cylinder) #140 #42
Left (rear cylinder) #135 #42

The pilot screw is used to regulate the air-fuel ratio for the engine idle speed; turinig it counterclockwise enrich the mixture (more gasoline). The default setting is 2 turns counterclockwise from the full-seated position.

The factory settings are likely to be for a very lean mixture at idle, which is also why the cut-off valve is needed. This setup is required to meet stringent pollution regulations. It may be that the best idle performance is achieved with a richer mixture (pilot screw turned out more than two turns). A richer idle also reduces the possibility of afterburn (exhaust popping) when the throttle is released.

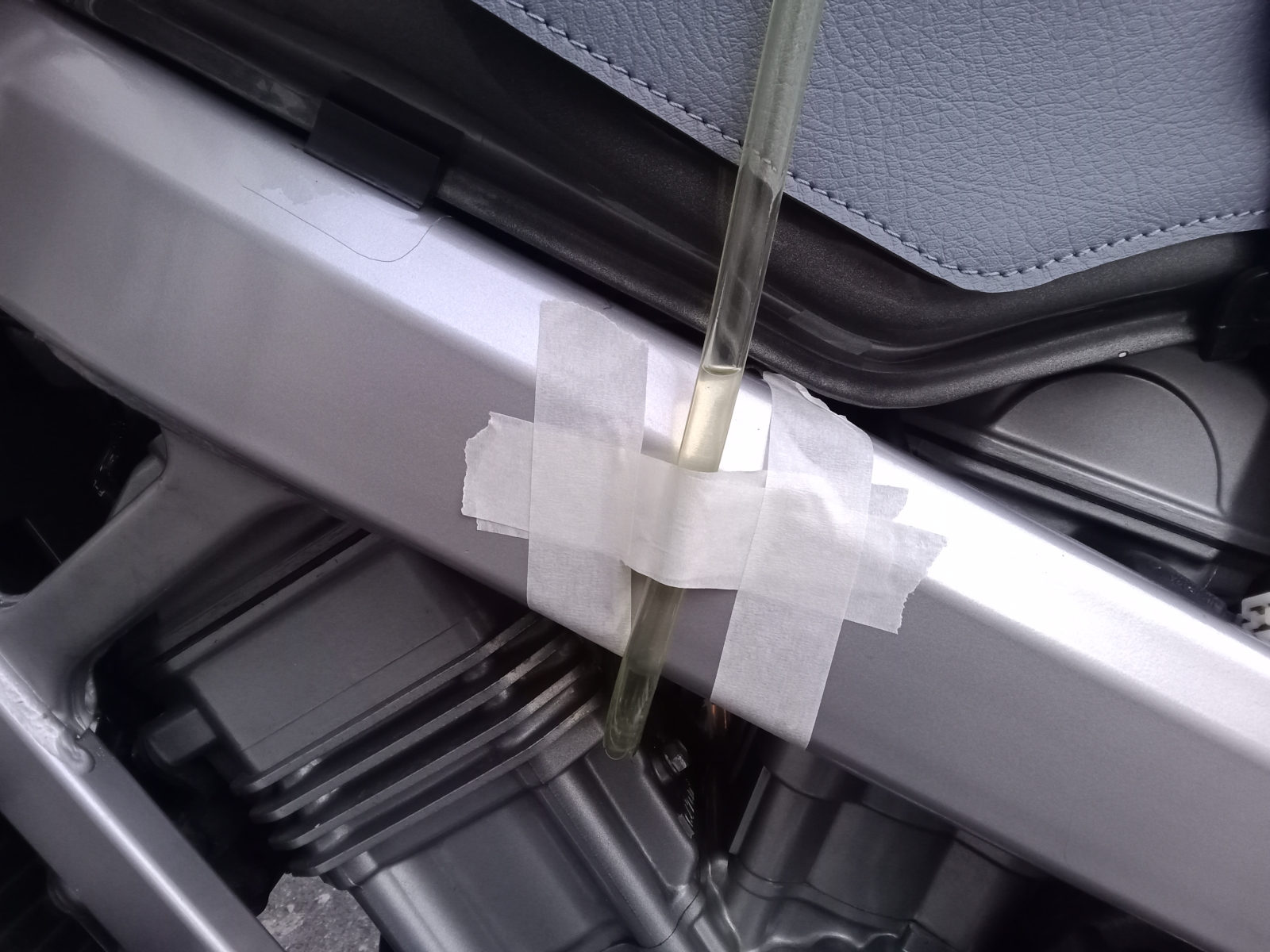

Fuel and breather pipes placement

In the following photos you can see how the fuel line and the breather tube are positioned around the carburetors (the lower end of the breather pipe should be inserted into the binder, together with the fuel pipe). This is how I found them in my 1991 Revere, but I found other models having the breather tube going to the right side, in a mirror-like way.

The air cut off valve

eng The Keihin carburetors on the NTV650 Revere feature the so-called air cut-off valve, a device that serves to enrich the air-fuel mixture when the throttle is closed and the engine has not yet slowed down (for example when using engine braking on a downhill run). In this condition, the cylinder sucks in with greater force than at normal idle, the idle jet therefore supplies a mixture that is too lean and the afterburn phenomenon occurs. Afterburn is the popping of the engine caused by a mixture that is too lean and cannot ignite in the combustion chamber. The unburned gasoline passes into the exhaust pipe and here, due to the high temperature, it ignites, producing the annoying explosions.

The cut-off valve circuit is a duct that complements the idle circuit and contributes for its own part to the air-fuel mixture for the correct idle functioning. The difference is that in this circuit the air duct can be closed, temporarily creating a greater supply of gasoline. The cut-off valve is operated by a membrane connected to the intake manifold: when the vacuum is very high (high rotation speed and closed throttle valve) the membrane closes the cut-off air duct; the result is a richer mixture that avoids afterburn. When the engine speed drops, the vacuum becomes lower and the cut-off valve returns to its rest position; the idle circuit is then returned to normal condition.

ita I carburatori Keihin della NTV650 Revere montano la cosiddetta valvola air cut-off, si tratta di un dispositivo che serve ad arricchire la miscela aria-benzina quando si chiude il comando del gas e il motore non ha ancora diminuito il numero di giri (ad esempio quando si usa il freno motore in discesa). In tale condizione il cilindro aspira con una forza maggiore rispetto al normale regime del minimo, il getto del minimo fornisce quindi una miscela troppo magra e si ha il fenomeno dell'afterburn. L'aferburn è lo scoppiettio del motore causato da una miscela troppo magra che non riesce ad incendiarsi nella camera di scoppio. La benzina incombusta passa nello scarico e qui, a causa dell'alta temperatura, si incendia producendo i fastidiosi scoppi.

Il circuito della valvola cut-off è un condotto complementare al circuito del minimo e contribuisce con una sua parte alla miscela aria-benzina per il corretto funzionamento del minimo. La differenza è che in tale circuito il condotto dell'aria può essere chiuso creando temporaneamente un maggiore apporto di benzina. La valvola cut-off viene azionata da una membrana collegata al condotto di aspirazione: quando la depressione è molto alta (alti regimi di rotazione e valvola a farfalla chiusa) la membrana fa chiudere il condotto dell'aria cut-off; il risultato è una miscela più ricca che evita l'afterburn. Quando il motore scende di giri la depressione diventa minore e la valvola cut-off torna nella posizione di riposo; il circuito del minimo viene quindi riportato alla condizione normale.
