Honda NTV650 Revere - Regulator/Rectifier troubleshooting

The regulator/rectifier is a semiconductor device; you can use a multimeter to check its health status, but using different testers will result in different readings. Also using a different range (scale) with the same tester will result in different readings.

The Honda workshop manual for the NTV 650 Revere gives the reading values that should be obtained using the Kowa 07411-0020000 digital multimeter on the Rx100 scale. That multimeter is specifically manufactured for Honda and it has two special scales marked as Rx100 and Rx1 respectively, grouped under the label CDI Ω. These two scales are specifically calibrated to measure the devices of a capacitor discharge ignition.

Because I don't have the Kowa multimeter, I used a DT-182 mini multimeter and a DT9806 one instead. In this page I give the values measured by those multimeters, some reading were made with the scale, others were made using the diode setting:

Digital multimeter Ranges to be used
Kowa 07411-0020000 CDI Ω Rx100
DT-182 Mini 200K Diode
DT9806 200kΩ Diode

Here are the pictures of the three multimeters:

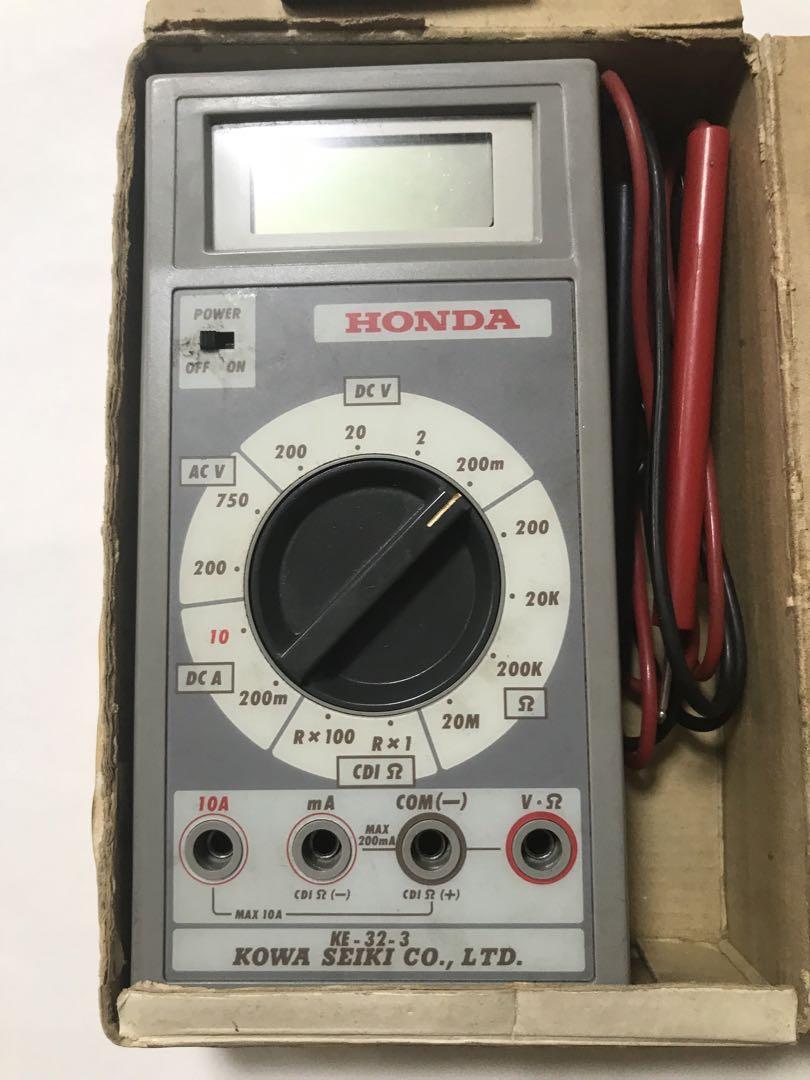

Kowa KE-32-3 07411-0020000 DT-182 Mini FIXME

Regulator/rectifier inspection (with engine off)

Battery ampere leackage

Turn the ignition switch to off and disconnect the negative terminal from the battery; connect the multimeter in series to close the circuit. The multimeter must be on the ampere scale and it should read a leackage of max 0.1 A at 20 °C.

With the regulator/rectifier disconnected

The regulator/rectifier connectors are behind the right side cover.

Measures on the wire harness and alternator side

The female connectors are attached to the wire harness and to the generator.

(+) Probe (-) Probe Reading
Red/White Green Battery voltage: fully charged 13.0~13.2, undercharged if < 12.3.
Yellow Yellow Alternator coils: 0.1~1.0 Ω at 20 °C
Yellow Ground No continuity

Measures on the the regulator/rectifier side

The male connectors are attached to the regulator/rectifier.

Kowa DT-182 DT9806
(+) Probe (-) Probe RX100 200K Diode 200kΩ Diode
Red/White Green 5~30 32.3 32.6 -
Red/White Yellow 1 1~20 - -
Red/White Yellow 2 1~20 - -
Red/White Yellow 3 1~20 - -
Green Read/White 32.2 32.5 -
Green Yellow 1 - - 518
Green Yellow 2 - - 518
Green Yellow 3 - - 518
Yellow 1 Read/White - - 518
Yellow 1 Green 1~20 - -
Yellow 1 Yellow 2 -
Yellow 1 Yellow 3 -
Yellow 2 Read/White - - 518
Yellow 2 Green 1~20 - -
Yellow 2 Yellow 1 -
Yellow 2 Yellow 3 -
Yellow 3 Read/White - - 518
Yellow 3 Green 1~20 - -
Yellow 3 Yellow 1 -
Yellow 3 Yellow 2 -

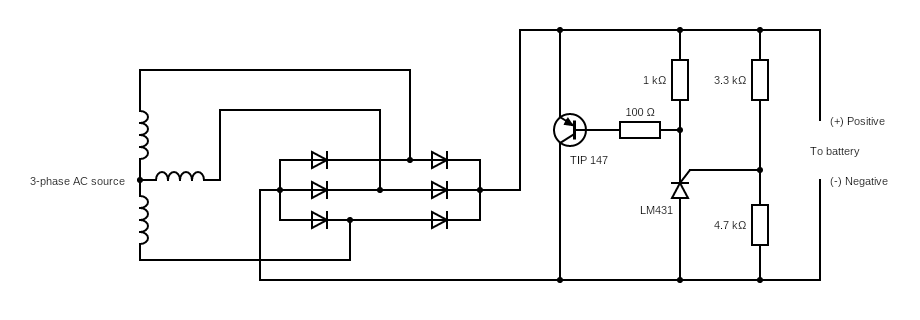

The following picture represents the schematic of a generic regulator/rectifier for a three-phase alternator (credits to www.homemade-circuits.com), use it to understand how the rectifier diodes are tested:

Motorcycle regulator/rectifier schematic

Regulator/rectifier inspection (with running engine)

Charging voltage

With the ignition switched off, measuring the voltage at the terminals of the fully charged battery should read 13.0~13.2 V. A value below 12.3 V means an under charged battery.

Starting the engine and gradually increasing the speed to 3000 rpm, should read a voltage of 13.5~15.5 V at 20 °C. This is the standard charging voltage for an AGM battery.

Charging current

Remove the main fuse and connect a multimeter in series to close the circuit. The multimeter must be on the ampere scale. Starting the engine and gradually increasing the speed to 3000 rpm, should read a current of 0.5 A at 20 °C. This is the standard charging current for an AGM battery.

Alternator voltage

FIXME
